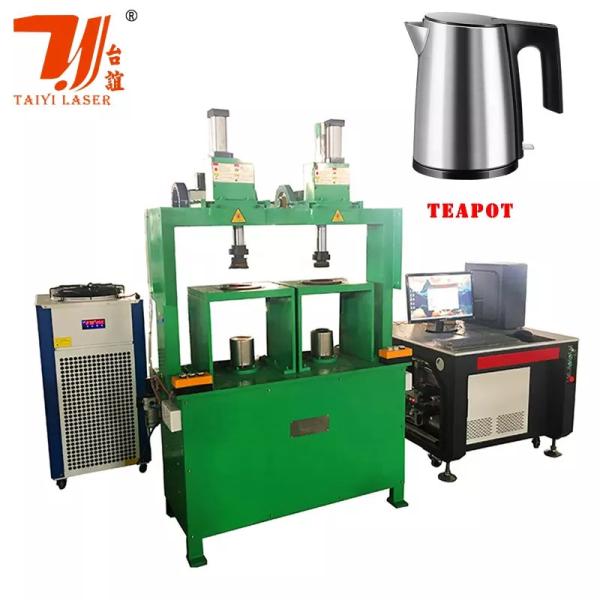

304 Stainless Steel Kettle Automatic Fiber Laser Welder Double Station

Name: 304 Stainless Steel Kettle Automatic Fiber Laser Welder Double Station
Brand: TAIYI
Price: 1 USD

Quality 304 Stainless Steel Kettle Automatic Fiber Laser Welder Double Station wholesale

Brand Name : TAIYI

Model Number : TY-100031F

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : Contact us for the price

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 500 Sets per Month

Delivery Time : 3-15 working days

Packaging Details : Export standard packing

Laser Power : 1000W 1500W 2000W 3000W 6000W optional

Laser Source : Raycus MAX IPG optional

Laser Wavelength : 1070nm

Warranty : 2 Years

Application Material : Metal Welding

Cooling System : Water Cooling

Weight : 300KG

Electricity : 380V/3-Phase/50Hz/40A/60A

Contact Now

304 Stainless Steel Kettle Automatic Fiber Laser Welding Machine Double Station

Tig Welders VS Laser Welders

	Tig Welders	Laser Welders
Heat input	Very high heat	Very low calories
Deformation	Easy to deform	No deformation
Welding spot	Large welding spot	Fine welding spot, adjustable spot
Exterior	Unsightly, need polishing	Smooth and beautiful, no need to sand
Perforation	Easy to pierce	Not easy to perforate, can be controlled
Protective gas	Need argon	Need argon
Precision	general	Precision
Processing time	Long time	Short time
Safety	Ultraviolet light, radiation	Radiation-free

Technical Parameter List

Product Name	Kettle Automatic Laser Welding Machine
Laser Power	1000W-4000W(optional)
Laser Source	Raycus(optioal)
Welding Head	WSX(optional)
Laser Wavelength	1070nm
Pulse Width	0.5-15ms
Pulse Frequency	≤100Hz
Spot adjusting range	0.1-3mm
Repeating precision	±0.01mm
Cooling System	Water Cooling
Voltage	380V/3-Phase/50Hz/40A/60A

Application

Application Industries:

Household appliances, kitchenware, outdoor sports products, and other metal products similar to the shape of a kettle.

Application Materials:

Stainless steel, copper, aluminum, gold, chromium, silver, titanium, nickel and other metals or alloys, it can also be used for a variety of welding between different materials.

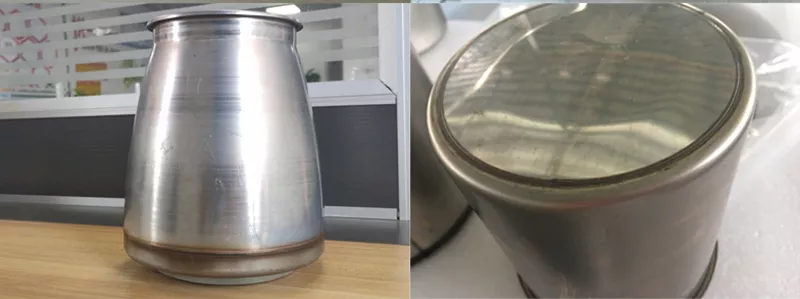

Sample Pictures

304 Stainless Steel Kettle Automatic Fiber Laser Welder Double Station
