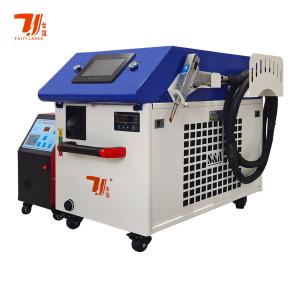

Multifunction Portable Handheld Laser Welding Machine
Products description:
The hand-held laser welding machine uses a continuous fiber laser as the light source and is equipped with a self-developed hand-held welding head. The shape, structure and man-machine are optimized based on humanization and work effectiveness. The hand-held welding head can be produced according to actual production. Customized, very suitable for non-standard production, water-cooled design, long-term welding does not get hot, small diameter, easy to hold, has the advantages of simple operation, beautiful welding seam, fast welding speed, and no consumables.
Feature:
1: Specialized in thin metal sheet or tube welding (thickness within 4mm) with perfect welding effect, available to replace traditional argon gas welding machine or electric welding machine;
2: Portable with Light weight and small size, very convenient for outdoor welding operation;
3: With safety lock for operation, the welding light will only be activated by contacting metal material;
4: Easy operation and usage guidance, no need for long-term training to any workers;

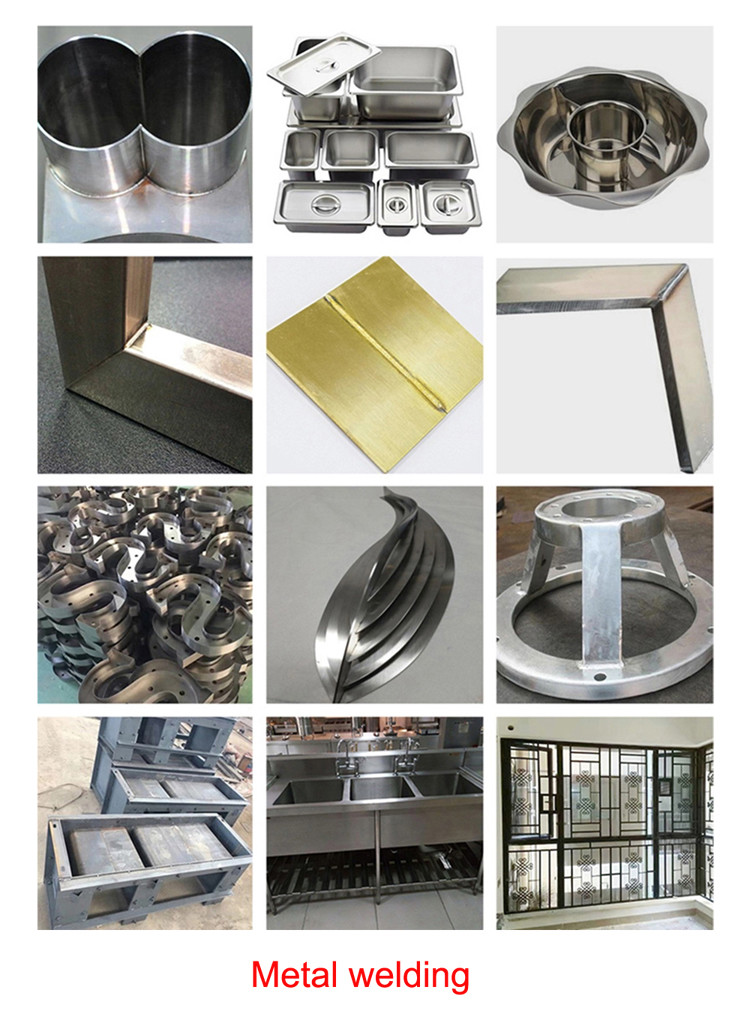

Application Materials:
Used for welding various stainless steel mirror characters, stainless steel brushed characters, stainless steel spherical characters, stainless steel paint characters, stainless steel spray characters, stainless steel solid characters, stainless steel electroplating characters, stainless steel gold foil characters, precision stainless steel characters, titanium flat characters, titanium spherical characters Advertisement words, Seiko titanium gold fonts, flat copper fonts, spherical copper fonts, red copper fonts, red copper antique fonts, seiko aluminum fonts, metal paint fonts (stainless steel strips, iron strips, low carbon steel strips), and metal fonts are welded to form. Lighting and mold industries, optoelectronic communication devices, medical, electronics, copper parts, aluminum parts and small welding processing industries.
Technical Parameter List:
| Product Name | Handheld Laser Welding Machine |
| Laser Power | 1000W/1500W/2000W 3000W optional |
| Laser Source | Max JPT Raycus optional |
| Welding Head | RAYTOOLS /Qilin |
| Laser Wavelength | 1070nm |
| Pulse Width | 0.5-15ms |
| Pulse Frequency | ≤100Hz |
| Spot adjusting range | 0.1-3mm |
| Repeating precision | ±0.01mm |
| Cabinet size | 845*490*550mm |
| Cooling System | Water Cooling |
| Voltage | 220V/3-Phase/50Hz |
Product Tags:
|
|
